The Genesis GV90's Dash Screen Grows 90 mm When You Park. Here's How It Works
A brushless motor, a mount on the cowl crossbar, and 100,000 test cycles turn the GV90's 23.6-inch display into a 24.6-inch theater. And it drops the instant you drive, partly because of the airbag.
Genesis has finally explained what's going on behind the GV90's party trick: the dashboard OLED that stands up by 90 mm (3.5 inches) when the SUV is parked, then quietly slides back down the moment it starts to roll. The engineering account, first published on Hyundai Motor Group's HMG Journal on September 8 and posted by Genesis's newsroom this week, is the first detailed account of a screen that moves for reasons beyond showmanship.

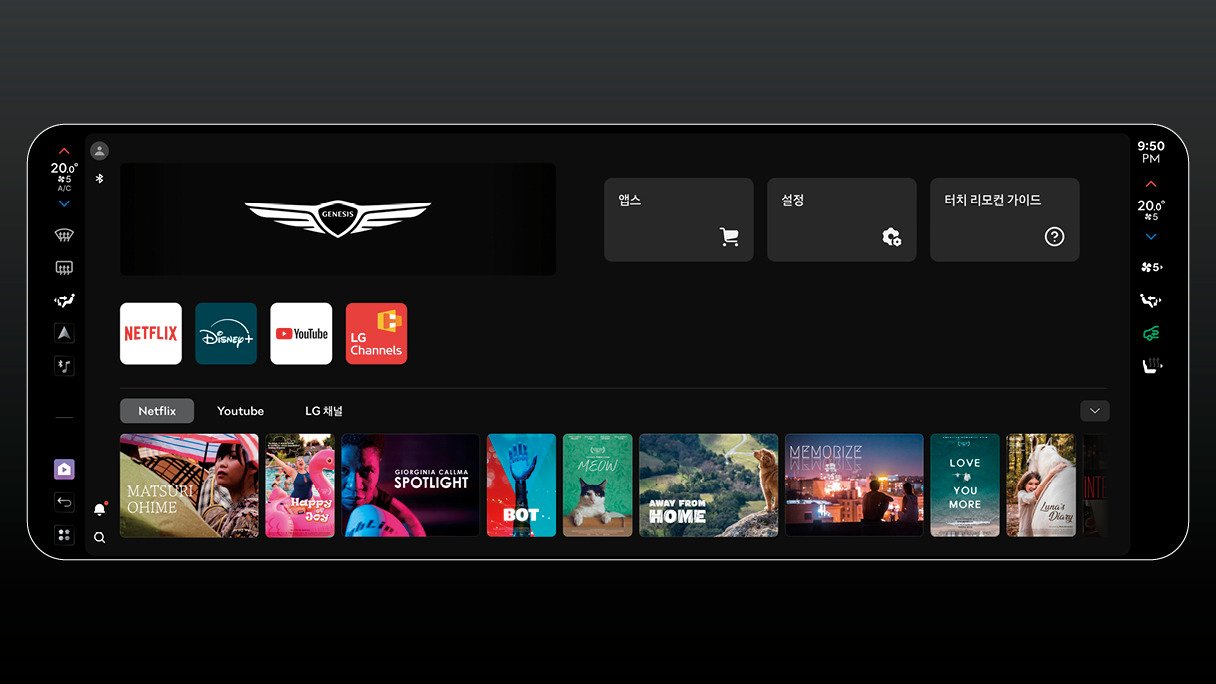

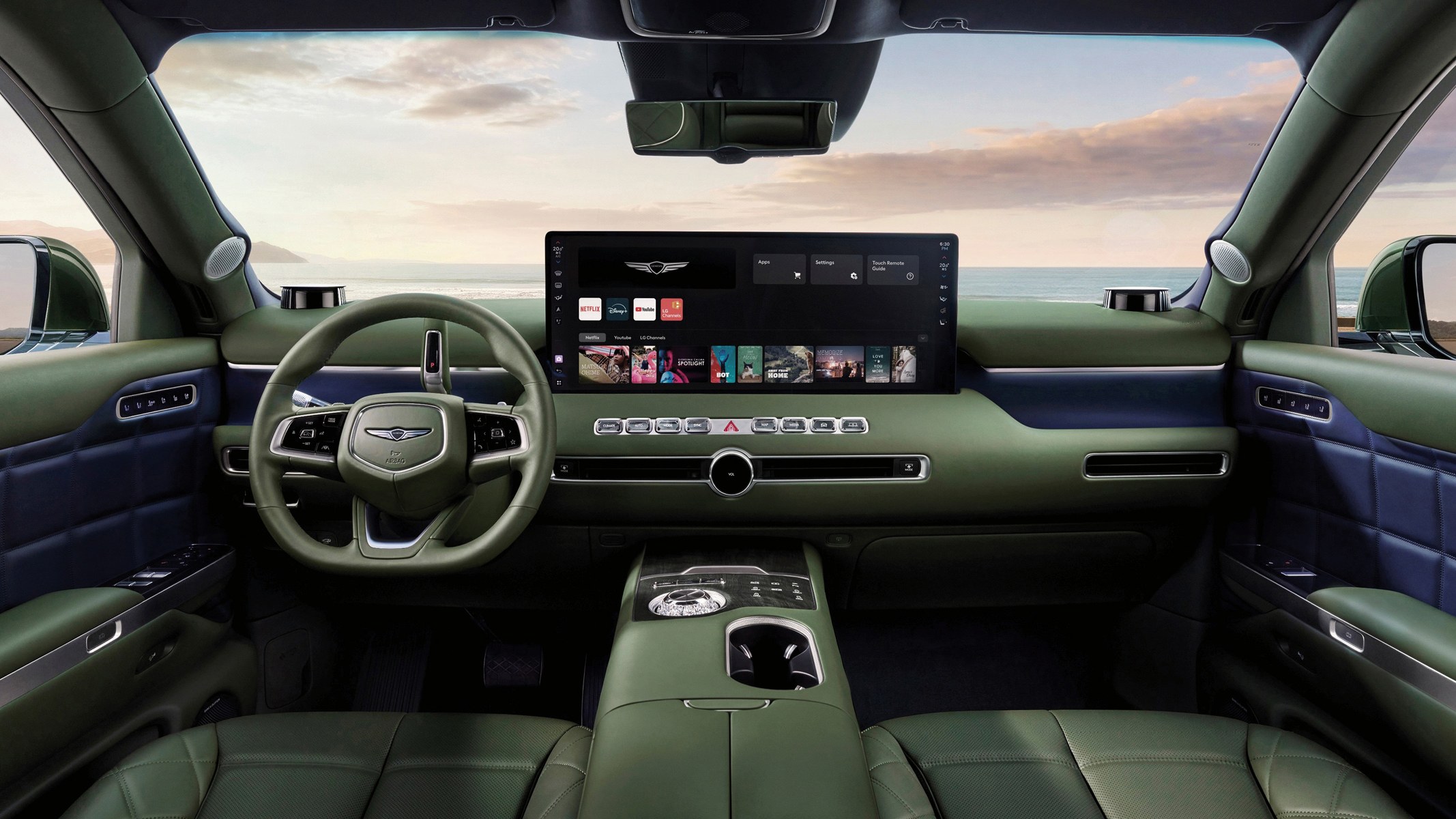

On the move, the panel works as a 23.6-inch wide-format display for driving data, navigation, and media. Park, press the extension button on the center fascia, and it rises to its full 24.6 inches: 584.1 × 219 mm (23.0 × 8.6 inches) at 3840 × 1440, with roughly 1.7 times the viewing area of the retracted state. That's when the software switches to Media Home, a smart-TV-style page for streaming services and live channels.
Bolted to the crossbar, not the dash
Adding a motor, gears, and guide rails to a display adds weight, and Senior Research Engineer Jongkyo Ahn says the team worried a conventional dashboard mount would let it shake on rough roads. The fix was to attach the screen directly to the cowl crossbar, the structural beam behind the dash that keeps the body from flexing. A brushless DC motor drives the lift along linear-motion guides, chosen for quiet running and long life.
Genesis says the mechanism survived more than 100,000 test cycles and stayed under 40 decibels, about library level, in cold, ambient, and hot conditions. Ahn recalls climbing into a chamber cooled to −30°C (−22°F) to check it in the cold. The company hasn't published a rated lifetime in years, only the cycle count.
Why it drops the moment you drive

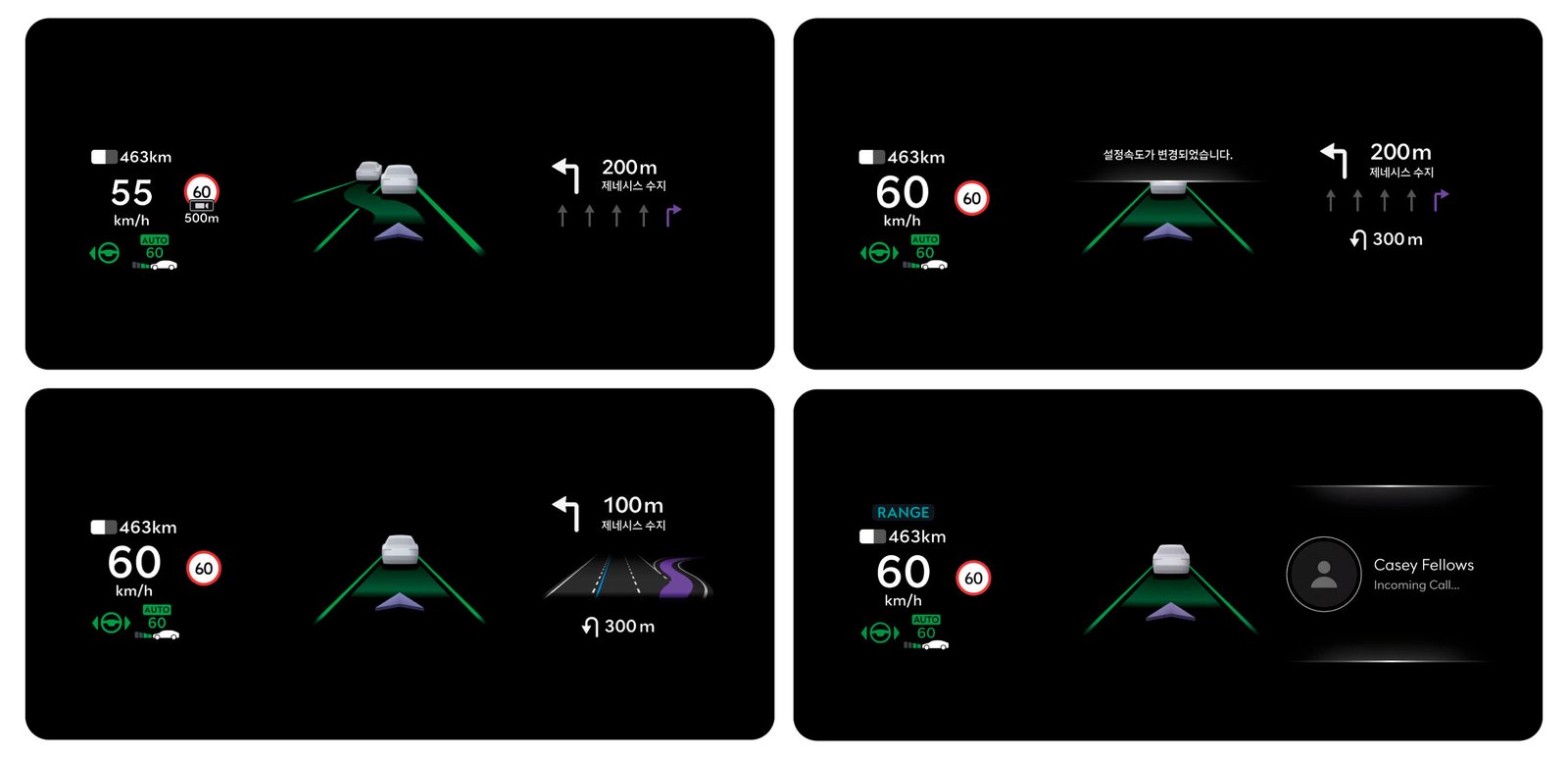

The retraction isn't just about keeping the driver's eyes on the road. At full height, the panel sits close enough to the passenger airbag that Genesis designed it to lower automatically as soon as the vehicle moves, so it can't get in the way of deployment. The same logic runs the computing side: the GV90's cluster, 25-inch head-up display, and center screen share one control unit, and Pleos Connect shifts resources toward driving functions on the move and toward entertainment once the car is parked and the screen is up.
The GV90 is the first Genesis on Pleos Connect, the group's next-generation infotainment platform that debuted on the Hyundai Grandeur in Korea in May and is slated for roughly 20 million Hyundai, Kia, and Genesis vehicles by 2030. The Genesis version is a bespoke build: it adds menu bars on both edges of the screen, one for the driver and one for the front passenger, and a HUD about twice the size of the group's earlier units. The Gleo AI voice assistant and a 25-speaker Bang & Olufsen Premier 3D system round out the package.
A different bet than Cadillac's
The GV90's most obvious US rival, the Cadillac Escalade IQ, takes the opposite approach with a fixed, curved 55-inch pillar-to-pillar display that never changes shape. Genesis is trading raw glass area for a screen that reconfigures itself, and betting that a moving part, tested to those numbers, is worth the complexity. We've laid out the rest of the matchup in our GV90 vs. Escalade IQ comparison.
What Genesis still hasn't said is what the theater will play in America. The press images show a Korean-market Media Home with Netflix, Disney+, YouTube, and LG Channels tiles, and the company's footnote warns that content services vary by region and partner deals. US pricing, EPA range, and an on-sale date are also still open; we're tracking all three in our GV90 hub.
